技术规格
| Laser wavelength | 940nm -class1( lEC60825-1:2007 ) |
| Total SPOT number | 576(H:24 xV:24) |
| Detect Range | 0.1m~20m |
| Depth Accuracy | ±25mm @800mm (Reflectance 90%) |
| Depth Precision | 10mm @800mm (Reflectance 90%) |
| Total FOV | TyP.H: 70.4° V:58° |
| Frame rate | 30Hz |
| Power supply | USB |
| Power Consumption | 1.7W @(5Vdc 0.34A) |
| Interface | Type-C (USB3.0) |
| Size | W:60mm x D:25mm x H:25mm |
| Weight | 48g |
产品应用
Versatile for Various Applications

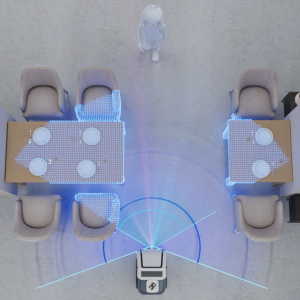

Navigation and Obstacle
产品特色
Lightweight, Rapid Deployment Empowering Mobile Robotics

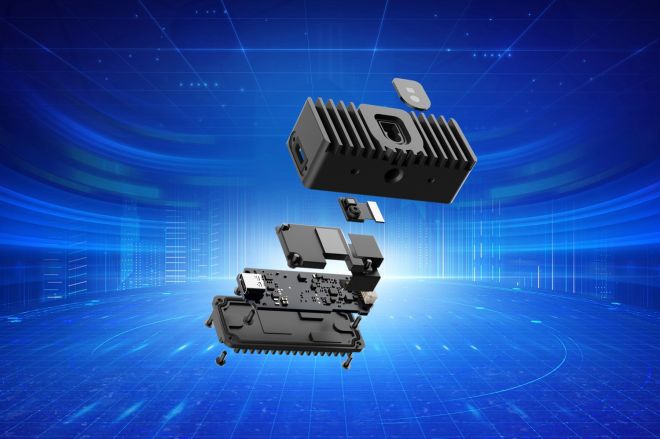

The single dToF module design leverages a USB interface to achieve a breakthrough in cost-effectiveness for industrial-grade ToF cameras.
It supports USB interface and is suitable for lightweight 3D perception scenarios such as warehousing and retail.
Featuring compact size and light weight, it can be easily integrated into various mobile devices or small robotic arms.
