Product Specifications
| Working Distance | 0.15m-5m@90% Reflectivity |
| Depth Accuracy | Accuracy ≤ 2.0% (1280x800@2m & 81% ROI) Accuracy ≤ 2.0% (640x400@2m & 81% ROI) Precision ≤ 1.5% (1280x800@2m & 81% ROI) Precision ≤ 1.5% (640x400@2m & 81% ROI) |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~70℃ |
| Interface | USB 3.0 |
| Dimension | 89.9mm*25mm*25mm |
| Average Power Consumption | 3.4W@30FPS RGBD |
| Depth Resolution / Frame Rate | USB2.0: 1280*800@25fps(MAX); 640*400@30fps; USB3.0: 1280*800@30fps; 640*400@30fps |
| Depth FOV | 83°（H）60°（V）@ 2m |
| IR/RGB Resolution | 1280*800; 640*400 |
| IR FOV | 86°（H）65°（V） |
| RGB FOV | 850nm |
| Shutter Mode | Global Shutter |
| Wavelength | USB 3.0;Type C |
Product Applications

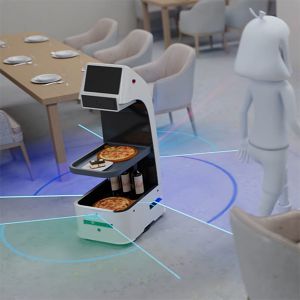

Multi-Directional Autonomous Obstacle Avoidance
Product Features

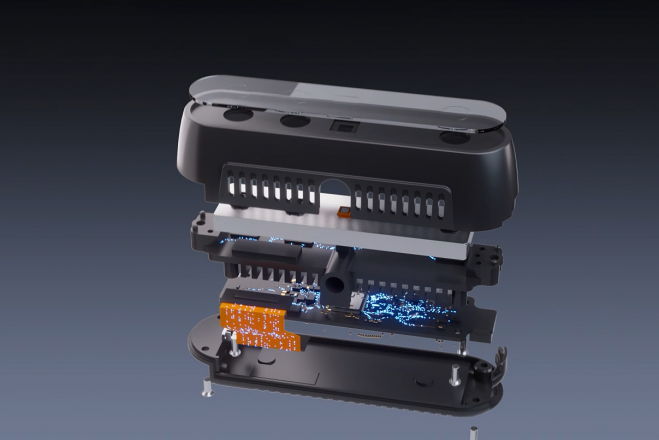

Integrated High-Efficiency Design
Integrates DPU/NPU/DSP/ISP, eliminating the need for external processors.
Built-in 2.5T NPU computing power, supporting the deployment of various AI algorithms.
Provides an embedded depth perception algorithm SDK.
Offers multiple depth operating modes, enabling frame synchronization and multi-device synchronization, compatible with passive trigger acquisition functionality.
Smart and Convenient, Safe and Reliable
Supports UVC protocol for plug-and-play without drivers.
Certified for laser safety Class I.
Supports OTA updates, filter configuration, frame rate configuration, and signal/time synchronization.
Compatible with various scenarios, adapting to outdoor and low-light environment requirements.
Contact Us
Sunny Optical has deployed technologies and products based on the two application areas of identification and positioning. The scenario applications cover XR and smart wearables, robots, AIoT (smart home, smart business, smart logistics, etc.). Welcome to contact us, you can add WeChat ID: shunyuzng.
